M2-S™

Fingerprint Readers for any Need

Rugged, durable, ergonomic, affordable. The M2-S fingerprint scanner from M2SYS Technology is designed for use in high throughput settings and is built to last.

The M2-S™ fingerprint reader

A wealth of experience across many real-world implementations has led us to extensively test and support multiple fingerprint scanning technologies, ensuring that you have the right options for success.

The M2-S™ fingerprint scanner was designed for use with M2SYS’ Hybrid Biometric Platform™ and is also compatible with many standard fingerprint SDKs. Our most durable fingerprint scanner, the M2-S’ ergonomic design forces perfect finger placement with each fingerprint scan to produce an optimized fingerprint image with maximum captured surface area.

This fingerprint reader was designed around the Digital Persona U.are.U 4500HD (high-durability) fingerprint sensor. Image capture, self-calibration, and image data encryption is controlled by its on-board electronics. The M2-S™ fingerprint reader provides virtually fool-proof fingerprint recognition. The “smart-touch” scanning area enables the fingerprint reader to reject latent and counterfeit fingerprint images.

M2-S™ FingerPrint Reader

The M2-S™ fingerprint reader has a rugged design and durable frame, providing sturdiness unmatched by other fingerprint scanners in the same price category. The bottom of this fingerprint reader has a mounting hole, allowing it to be easily secured to any surface.

Certifications: RoHS, WEEE, UL, USB, WHQL

Have a question in mind or need more info? Tell us about it and an account executive will respond shortly.

Features

  • Small form factor
  • Excellent image quality
  • Encrypted image data
  • Latent print rejection
  • Counterfeit image rejection
  • Rotation invariant
  • Works well with dry, moist or rough fingerprints
  • Mountable to 6″ adjustable metal stand
  • Designed for use with all solutions of M2SYS
  • Compatible with many standard fingerprint SDK’s

Benefits

  • Works well with dry, moist or rough fingerprints
  • Rugged Design
  • Wider Sensor for bigger fingers to capture
  • Inside at the heart Digital Persona U. are U. 4500HD sensor is used
  • Self-Calibration
  • Image data encryption
  • Mountable to 6” adjustable, metal stand
  • Provides 512 dpi Image
  • USB 2.0 connection

Technical Specifications

Item Specification
Interface USB 2.0
Type Optical
Size 1″ (D) x 2.75″ (W) x 5.5″ (H)
Active Sensing Area 0.58” (W) x 0.71” (L)
Calibration Device self-calibrates
Resolution 512 dpi
Operating System Windows XP, Vista, Windows 7, 2000, Me, Server 2003
Warranty 1 year mechanical defect
Weight 7 oz. (without cable)
Compatibility USB Specifications 1.0, 1.1, 2.0
Case Studies

Product: Bio-SnapOn Hybrid Biometric Platform™

Client: City of Las Veags

Use: Membership Management

Challenge:

  • High cost for PVC cards and related printing expenses used for existing enterprise applications that manage their client database, point of sale operations, and course registration information
  • Create a concrete audit trail for safety
  • Institute a new check-in system that did not sacrifice speed or accuracy

Solution:

  • Integrating Bio-SnapON with their existing enterprise software at multiple recreation centers to replace their existing PVC card system for member check-in

Benefits:

  • Prevent access of unauthorized personnel into facility
  • $100k in deferred product purchases
  • $15 – $20k annual savings
Download M2-S™ Fingerprint Reader Brochure
M2-S™ Fingerprint Reader Brochure in English
M2-S™ Fingerprint Reader Brochure in English
Download Now

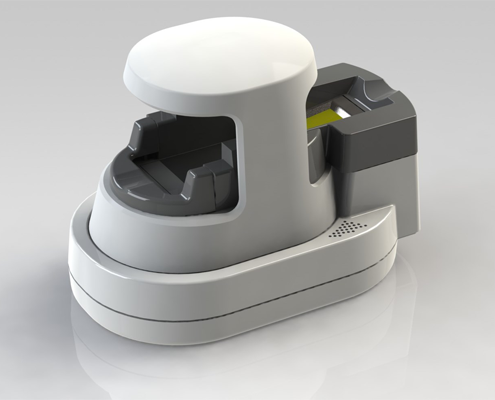

M2-FuseID™ Advanced Fingerprint Reader

“Smart” Finger Reader

Next-Generation Fingerprint Reader Delivering Optimal Security & Reliability with Advanced Finger Imaging and Liveness Detection

Bio-Hyperserver™

High Speed Matching

Lower your hardware burden with industry’s fastest matching system. – 100 million prints/sec in a single server.
