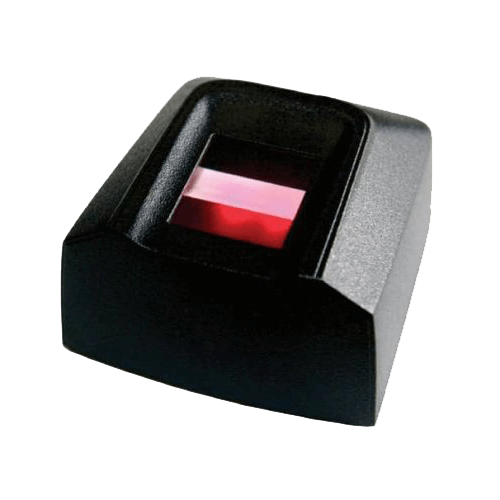

M2-EasyScan Pro™ – Fingerprint Device
An affordable fingerprint device for large scale or small scale fingerprint identification, the M2-EasyScan Pro™ single fingerprint reader is a specialized fingerprint scanner from M2SYS with an advanced optical system that can capture high quality images in seconds. It’s thick, anti-scratch coating on the scanning surface endures long term heavy duty usage in any harsh environment without any difficulty.
With high image quality specifications for single fingerprint readers, the scanner is built to capture single fingerprint images from dry, moist, aged, scarred, and difficult to scan fingers for greater accuracy and reliability.
|Scanner Dimensions, Weight||27mm x 40mm x 73mm, 100g (without stand)|
|Power Source||Powered by USB bus|
|Image Resolution | Size||508PI | 258 x 336 pixels|
|Light Source||Infrared LED|
|Optical Fingerprint Sensor||FDU04FRS™|
|Imaging (Capture) Speed||0.4 to 1.2 sec with Smart Capture™|
|Operating Temparature||-20° to +65°C|
|USB Cable Lenth||Detachable 2 Meter standard USB cable|
|Certifications||FCC, CE, RoHS|
|Supported Standards||ISO 19794, INCITS 378, BioAPI, SP 800-76|
|Warranty||1Year Limited Warranty|
|Supported OS||Windows XP, VISTA, 7 (32 & 64 bit) Windows Server 2008 R2, 2003|
