:: Products -> Biometric Hardware -> M2-DualEye™ Iris Camera


Superior Dual Iris Recognition Technology

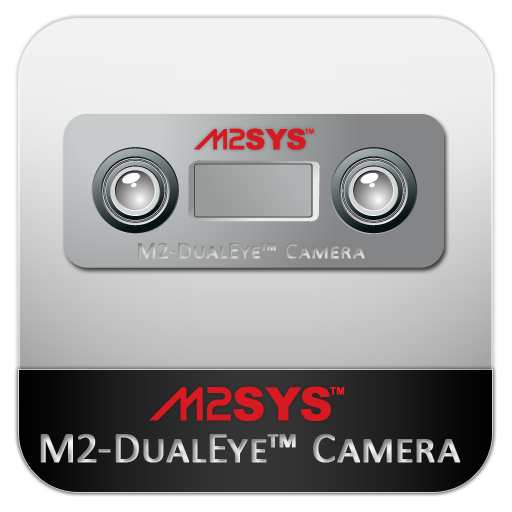

The M2-DualEye™ iris camera is a state-of-the-art device that can be instantly implemented through the M2SYS Hybrid Biometric Platform™.

The M2-DualEye™ is ideal for environments that require the utmost accuracy, a high-level of security, rapid authentication, and a completely contactless scanning method. The iris scanner quickly processes dual eye image acquisition, encoding, and internal matching.

With the ability to quickly and efficiently perform one-to-one (1:1), or one-to-many (1:N) contactless matching in almost any indoor or outdoor environment, the M2-DualEye™ is an elite iris biometric recognition reader that can be utilized by practically anyone 100% of the time.

When integrated using the Hybrid Biometric Platform™ from M2SYS, the scanner can work seamlessly with fingerprint, finger vein, and palm vein technology through an implementation that takes less than 24 hours.

Features and Benefits

> Multiple Capture Modes
TheM2-DualEye™ features two-eye image acquisition capabilities along with right or left eye authentication and two-eye mode.

> Contactless
The actual iris never has to come into contact with the reader because the iris scan takes place at a distance, making the M2-DualEye™ a 100% contactless and hygienic biometric scanner.

> High Intelligence Factor
Iris scanning is the ideal form of biometric authentication because of its unique properties and reliable identity capture capabilities. Iris recognition is the most accurate, rapid, and scalable form of biometric recognition on the market.

Unlike other biometric methods that can be susceptible to damage over time, the iris is an internal organ that is well protected by the eyelid and a single enrollment can last a lifetime because the actual iris does not change or degrade overtime.

> QUESTIONS? NEED MORE INFO? Tell us your needs and an account executive will quickly respond.

Iris Scanner specificationsIris Recognition Media
M2-DualEye™ Technical Specifications
Category Description
Two Camera Models Binocular Fixed-Focus Camera Module Binocular Auto-Focus Camera Module
Image Resolution 640 x 480 Pixels (each eye), 8 bit Grayscale (Dual ¼” VGA CMOS Sensors)
Focal Distance Fixed-Focus: 14.5 cm ± 0.5 cm (Focal Depth = 1.0 cm range) Auto-Focus: 14.0 cm ± 3.0 cm (Focal Depth = 6.0 cm range)
Illumination Two Infrared LEDs (Radiant Intensity of 0.2 mW/cm2 for each LED)
Case Dimensions 117 mm x 56 mm x 39 mm
Security PKI and AES; X509 Certificate, PFX/PKCS#12 Certificate
Warranty 1 year mechanical defect
Operating Temperature -10°C to +60°C
Operating Humidity 0 to 95%, non-condensing
Usage Indoor/Outdoor, avoiding direct sunlight
  :: Sales Center
:: Dual Iris System Benefits
> Contactless, Non-Intrusive, and Hygienic.
> Has the smallest failure to enroll rate, FTE, than any other form of biometric technology.
> Iris patterns will not change over time and remain unique and consistent throughout a person’s lifespan.
> Rapid Integration Using the M2SYS Hybrid Biometric Platform™
> High level of user acceptance.
> Advanced iris recognition technology allows for near 100% read rates.
> More affordable than other iris scanners in the same category.
