SUPERIOR DUAL FINGER RECOGNITION TECHNOLOGY

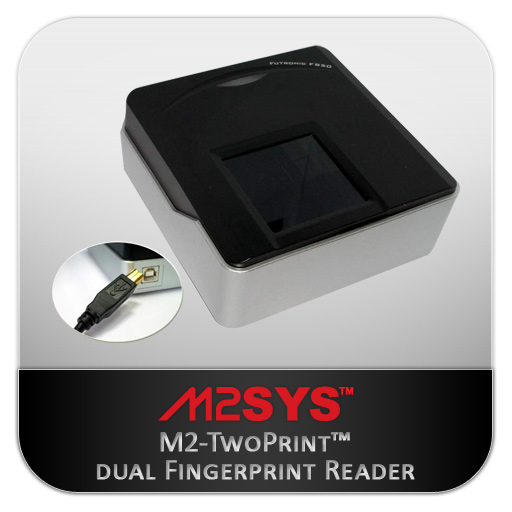

The M2-TwoPrint™ dual fingerprint reader is a durable, sturdy scanner built with a large scanning area specifically designed to quickly capture high quality images.

Well suited for deployments subject to poor skin integrity in harsh conditions this scanner has the capability to capture single, dual and roll images. Characterized by its versatility to operate in a host of different environments, the M2-TwoPrint™ is a perfect scanner for both large and small deployments in high or low traffic areas.

An affordable solution for large scale or small scale fingerprint identification the M2-TwoPrint™ Live Scanner is a specialized fingerprint scanner from M2SYS with a large scanning area and an advanced optical system that can capture high quality images in seconds. It's thick, anti-scratch coating on the scanning surface endures long term heavy duty usage in any harsh environment and can easily handle dry, wet, blurred and scarred fingers without any difficulty.

FBI certified to be compliant with PIV- 071006 image quality specifications for single finger readers, the scanner is built to capture single finger, dual finger and roll finger images.

Features:
  • High Speed Quality Images in Seconds
  • Anti-Scratch Glass Scanning Surface
  • Sturdy Design
  • Captures Single, Dual or Roll Finger Images
  • FBI Certified with PIV-071006 Image Quality
  • Easily Traceable with Unique Serial Number
  • Affordable for Large or Small Scale Systems
Benefits:
  • Easily Handles Low Quality Skin Integrity
  • Ideally Suited for Long Term Use
  • Able to Withstand Heavy Use in Harsh Environments
  • Safe, Secure for any Deployment
  • Quick Set-Up and User-Friendly Interface

> QUESTIONS? NEED MORE INFO? Tell us your needs and an account executive will quickly respond.

Iris Scanner specificationsIris Recognition Media
M2-TwoPrint™ dual fingerprint reader Technical Specifications
Item Specifications
Scanner Dimensions 4.33" X 4.33" X 1.78" (110mm X 110mm X 45mm)
Fingerprint Sensing Area 1.5" X 1.6" (38.10mm X 40.64mm)
Power Source Powered by USB bus
Image Resolution 800 x 750 pixel with 500 DPI
Light Source Infrared LED
Fingerprint Image File Size 600K byte
Device Identifier Unique serial number programmed
Operating Temperature 14°F –131°F (-10°C to +55°C)
Interface USB 2.0, plug and play device
USB Cable Length Detachable 2Meter standard USB cable
Weight 460g with cable, 380g without cable
Certifications FBI, FIPS, PIV
Warranty 1 Year Limited Warranty
Supported OS Windows XP, VISTA, 7 (32 & 64 bit)
  :: Sales Center
Need more information or a quote about M2-TwoPrint™ dual fingerprint reader? Contact Us
:: M2-TwoPrint™ Dual Fingerprint Reader Video

Click here for a video that explains the features, benefits and proper scanning techniques of the M2-TwoPrint™ Dual Fingerprint Scanner
:: M2-TwoPrint™ reader Brochure
M2 TwoPrint dual fingerprint reader Brochure
Download Brochure
