:: Products -> Biometric Hardware ->M2-TenPrint™ fingerprint Live Scanner


Superior Ten Finger Recognition Technology

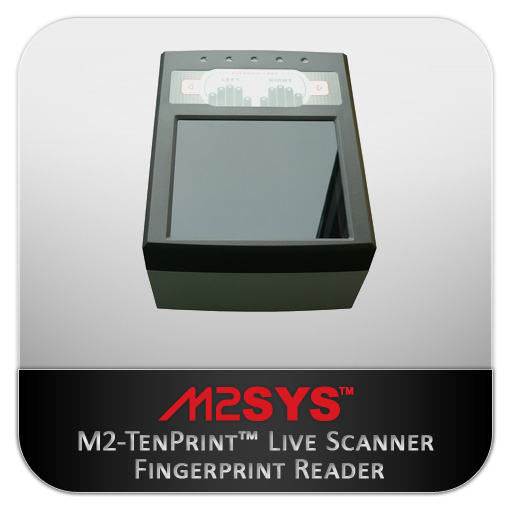

The M2-TenPrint™ fingerprint Live Scanner is a specialized device with an advanced optical system that can capture a high quality 4 finger FBI EBTS Appendix F certification image in less than 1.0 sec.

It is an affordable solution for large scale fingerprint identification systems which are available with M2SYS Technology's AFIS software solution and add-ons.



The M2-TenPrint™ fingerprint scanner's wide scanning area makes it adaptable to creating a rolling fingerprint image beside the flat fingerprint capture. The design renders it a viable fingerprint biometrics solution in various environments and applications including border control, electronic ID, national ID, driving licenses, healthcare, ration cards & social welfare, ePassport issuance and electronic enrollment and verification.

The programmable LEDs, buttons and acoustic buzzer provide audio and visual scan verification thorough an intuitive user interface which allows the end user to confirm the fingerprint scanner results.

Features:
  • Wide Scanning Area
  • Advanced Optical System
  • Durable Compact Design
  • Captures High Quality Image
  • Programmable LED Buttons
  • Acoustic Buzzer

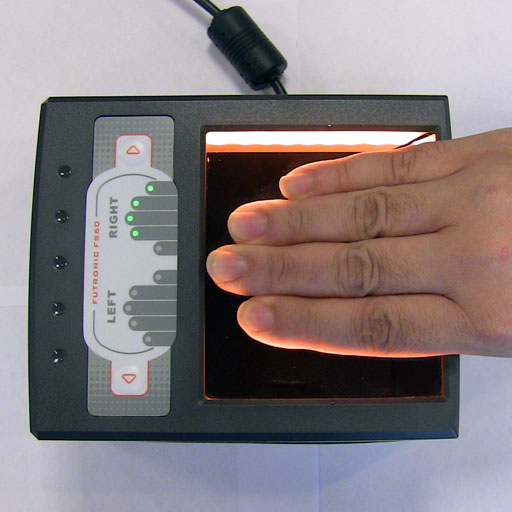

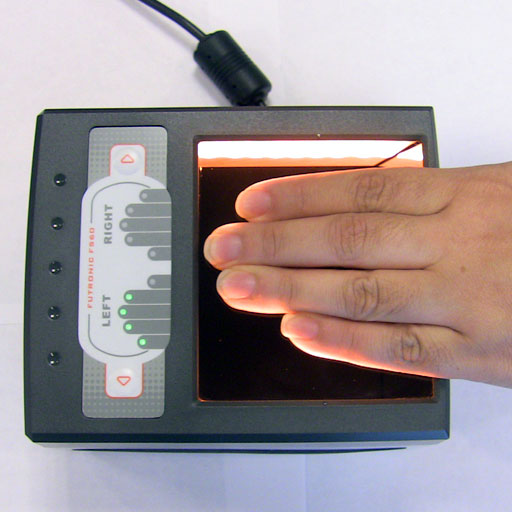

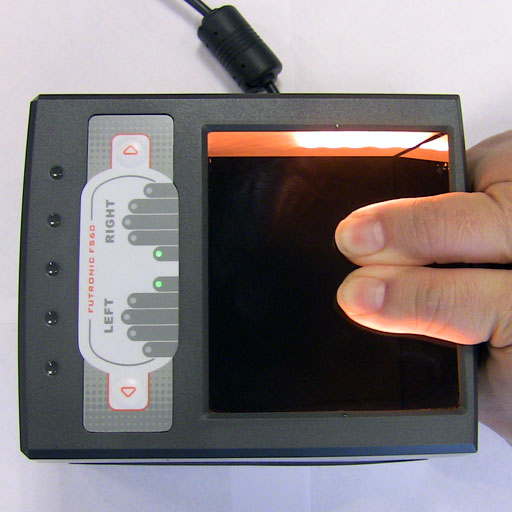

  • Supports Flat & Rolled Fingerprints
Benefits:
  • FBI EBTS Appendix F Certified
  • Suitable for Use in Various Environments
  • Intuitive User Interface Allows for Customization Applicable to Wide Range of Deployments (Border Control, Electronic ID, National ID, etc.)
  • 1 Year Warranty

> QUESTIONS? NEED MORE INFO? Tell us your needs and an account executive will quickly respond.

Iris Scanner specificationsIris Recognition Media
M2-TenPrint™ fingerprint Live Scanner Technical Specifications
Item Specifications
Scanner Dimensions 4.86” X 6.00” X 3.35” (123.5 mm X 152 mm X 85 mm)
 Fingerprint Sensing Area 3.2” x 3.0” (81.2mm x 76.2mm)
 Roll Print Size 1.6” x 1.5” (40.64mm x 38.1mm)
 Image Resolution 1600 X 1500 pixels with 500 PPI
Image Quality FBI IQS IAFIS (Specification Appendix F)
LED Indicators 10 Orange & Green dual color
Standard Features 10 LED Lights, 2 Buttons and Buzzer
Housing ABS for outer layer and Aluminum blend internal structure
Operating Temperature 0°C to +50°C, 0-90% Relative Humidity
Interface USB 2.0
USB Cable Length Detachable 1.15 Meter Cable
Light Source Internal Infrared LED
Power Source Powered by USB bus
Weight 4.4 lbs. (about 2 kg.)
Certifications FBI, FCC, CE and RoHS Compliant
Warranty 1 Year Limited Warranty
Supported OS Windows XP, VISTA, 7; Linux
